250mm Pipe Foot Channel Assembly HDG

250mm Pipe Foot Channel Assembly | Anti-Vibration Base | Floor Mount Kit

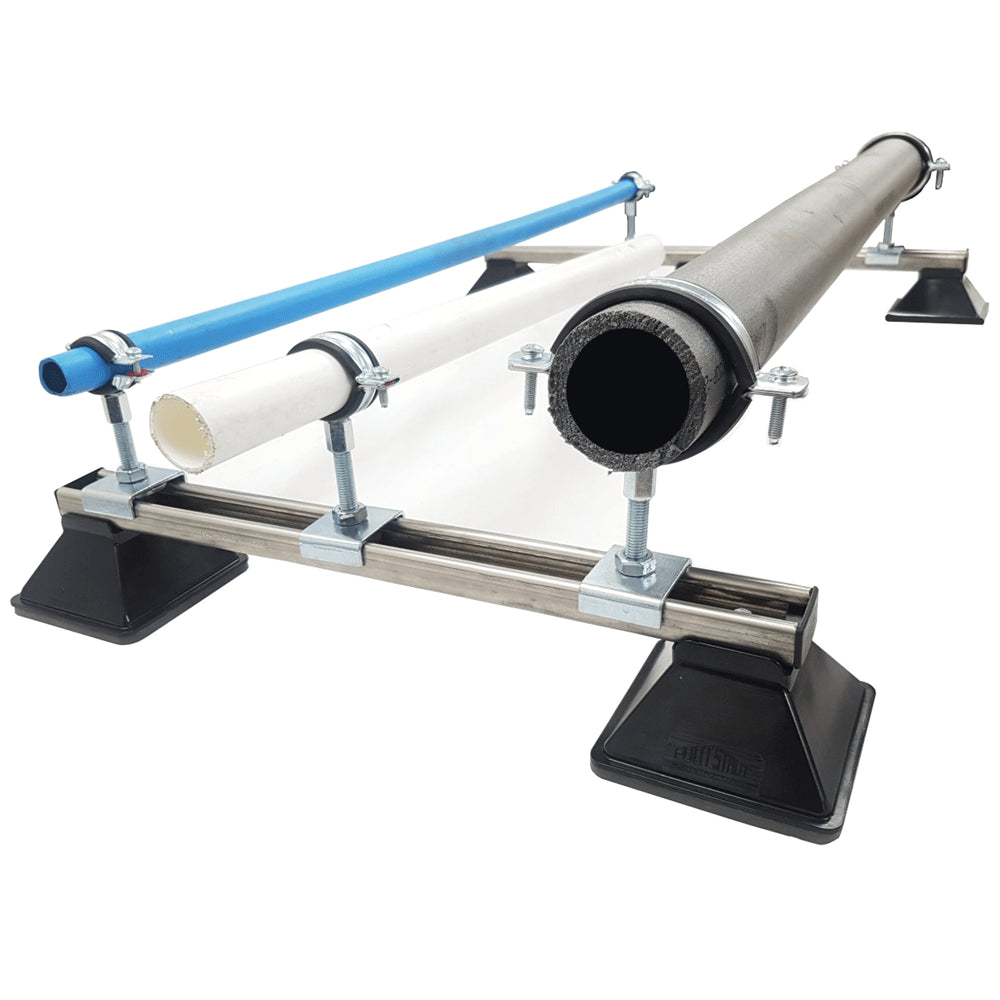

This 250mm pipe foot channel assembly is the ideal solution for floor-mounted support systems. Designed for stability and ease of installation, it features a 110x110mm anti-slip nylon base and a 250mm slotted 21x41mm channel pre-installed on top. Suitable for light-duty applications requiring vertical or horizontal cable or pipe containment.

Key Features

• Foot Base Dimensions: 110mm x 110mm x 60mm Height
• Material: High-Density Nylon Plastic
• Channel: 250mm Length – 21x41mm Slotted – Pre-Galvanised (PG)
• Foot Pad: 5mm Anti-Vibration & Anti-Slip Foam Base
• Safe Load Capacity: Up to 50kg static vertical load
• Span Guidance: Recommended 1m–1.5m spacing depending on weight
• Fixings Included: 2 x 6.3x19mm Tech Screws & 2 x 21mm Black End Caps

Applications

This floor mounting pipe assembly is commonly used for pipe and cable support systems, electrical containment, HVAC base frames, and M&E modular builds. The anti-vibration nylon base offers a stable and noise-reducing mounting point, especially useful on concrete or raised floor systems.
