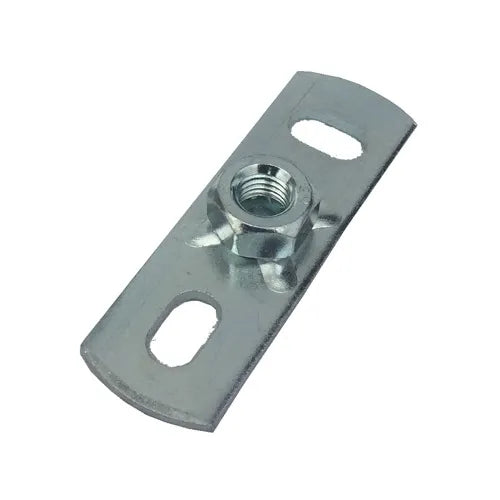

M6 Back Plate – Female

M6 Threaded Rod Hanger – Female Back Plate (BZP Steel)

This M6 threaded rod hanger with a female back plate offers a simple yet secure solution for static vertical load support. Built from bright zinc plated (BZP) steel and designed to work with M6 threaded rods, it’s ideal for mechanical and electrical suspension systems, containment, and equipment mounting in commercial or industrial settings.

The back plate is 3mm thick and features resistance welded construction for durability and safety. Its M8 clearance slots, positioned at 90 degrees, allow for easy alignment and fixing during installation. This product is purpose-built for static vertical loads and supports weights up to 250kg.

 Technical Specifications:

• Thread Size: M6 (Female)
• Finish: Bright Zinc Plated (BZP)
• Back Plate Thickness: 3mm
• Back Plate Dimensions: 75mm x 25mm
• Clearance Holes: M8 size – slotted at 90° for easy installation
• Load Rating: 250kg (static vertical use only)

 Key Benefits:

• Secure female connection for M6 threaded rods
• Heavy-duty welded design for structural reliability
• Bright zinc plating provides corrosion resistance
• Quick installation with slotted clearance holes

 Applications:

• Mechanical and electrical containment support
• HVAC and pipework vertical hangers
• Service riser frameworks and plant rooms
