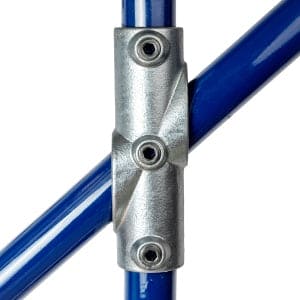

Key Clamp Type 130C 30-40 Degree Adjustable Cross 42.4mm

Key Clamp Type 130C 30-40 Degree Adjustable Cross 42.4mm

£5.25 GBP
£5.25 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Description

Adjustable cross between 30 degree and 45 degree , used as a cross connection to connect the vertical to the mid/lower rails on a sloping or staircase guardrail systems with the upright remaining vertica

Specification


Technical Data

  • Manual: BS EN 1562:1997 black heart malleable iron, BS EN 1536 ductile iron
  • Thread: BS2779:1986 1/8, 1/4, 3/8
  • Grub Screw: DIN 916
  • Surface Treatment: BS EN 1461:1999 hot dip galvanizing. IRAM 1451-3:1995 epoxy coating
  • Tube standard: BS EN 10255 (formerly BS1387)
