Right Angle Gusset 2×2 Hole (Type – P2484)

Right Angle Gusset – 2×2 Hole Plate | Type P2484 (Hot Dip Galvanised)

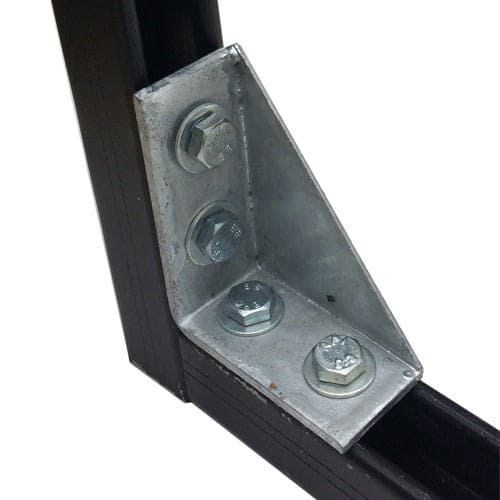

This right angle gusset 2×2 hole bracket is manufactured from hot dipped galvanised mild steel and designed to reinforce 90-degree joints in strut channel frameworks. The Type P2484 gusset offers enhanced structural support through its welded side plate, increasing load stability at angled intersections.

With four pre-drilled 14mm holes, this gusset plate enables simple, secure fixing using M12 bolts or equivalent strut fasteners. It fits all standard 41mm channel profiles and is suitable for both internal and external applications, including plant rooms, containment systems, and rooftop installations.

The 5mm plate thickness ensures strength for medium to heavy-duty frameworks, making it ideal for mechanical and electrical strut assemblies.

 Technical Specifications:

• Type: P2484 – 2×2 Hole Gusset
• Dimensions: 85mm x 100mm
• Material: Mild Steel
• Finish: Hot Dipped Galvanised (HDG)
• Plate Thickness: 5mm
• Hole Diameter: 14mm – Fits M12 bolts
• Compatibility: Suitable for all strut channel types

 Key Features:

• Welded side plate provides extra gusset strength
• Hot dip galvanised for corrosion protection
• Supports 90° joints in strut framing systems
• Quick installation with 2×2 pre-drilled holes

 Applications:

• Mechanical and electrical frameworks
• HVAC channel framing and support structures
• Wall-mounted and suspended bracket systems
• Indoor and outdoor containment setups
